Tire Curing Press (Tire Vulcanizer)

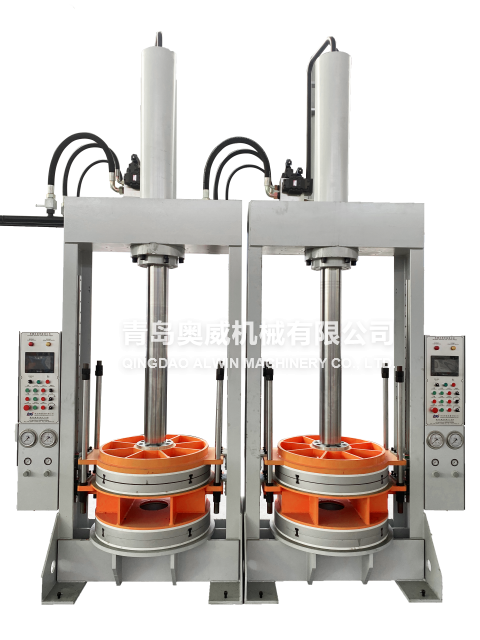

Two-layer Bladder Shaping Motorcycle Tire Curing Press
Equipment use

The curing tyre vulcanizing machine with bladder. It greatly reduces the labor intensity of workers, improve the quality of the tyre curing. The bottom mold can be automatically pulled out, realize the closed embryos tires and closed to remove the tires,when embryos installed, automatically enter, realize clamping curing,curing time to determine, automatic alarm, and then realize open mould,tires with the lower die out,take out of finished tire. We can design various models and specifications of the vulcanizing machine according to the user needs.


Two-layer Bladder Shaping Motorcycle Tire Curing Press
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Two-layer Bladder Shaping Motorcycle Tire Curing Press
Parameter
型號TypeLLB-650/40LLB/M-800/60LLB-800/100

最大合模力

Max.Closing mold force (T)

25-406080-90

熱板直徑

Dia. of heating plate (mm)

500-650800800-840

熱板間距

Space between heating plates (mm)

300-600500-600600-650

適用輪輞直徑

Applicable rim dia. (inch)

4”-5”-6”-8”8”-16”16”-18”

模具數量

Qty. of molds (set)

221

柱塞直徑

Dia. of plunger (mm)

200200290

中心桿直徑

Dia. of center pole (mm)

25-3535-4040

中心桿行程

Stroke of center pole (mm)

200200300

工作氣壓

Working air pressure (Mpa)

0.6-0.80.6-0.80.6-0.8

內壓空氣

Internal air pressure (Mpa)

1.81.81.8

內壓蒸汽

Internal steam pressure (Mpa)

0.8-1.50.8-1.50.8-1.5

預定型內壓

Internal pressure of preshaping (Mpa)

0.1-0.20.1-0.20.1-0.2

電機功率

Motor power (kw)

7.57.511

主機外形尺寸

Overall dia. of host machine (LxWxH) (mm)

1200x900x23002400x900x29102700×1300×2550

泵站外形尺寸

Overall dia. of pump (LxWxH) (mm)

1000x600x12001000x600x12001520×1130×1300

主機重量

Weight of host machine (kg)

250028003500
